Needles and consumables

Injection needles

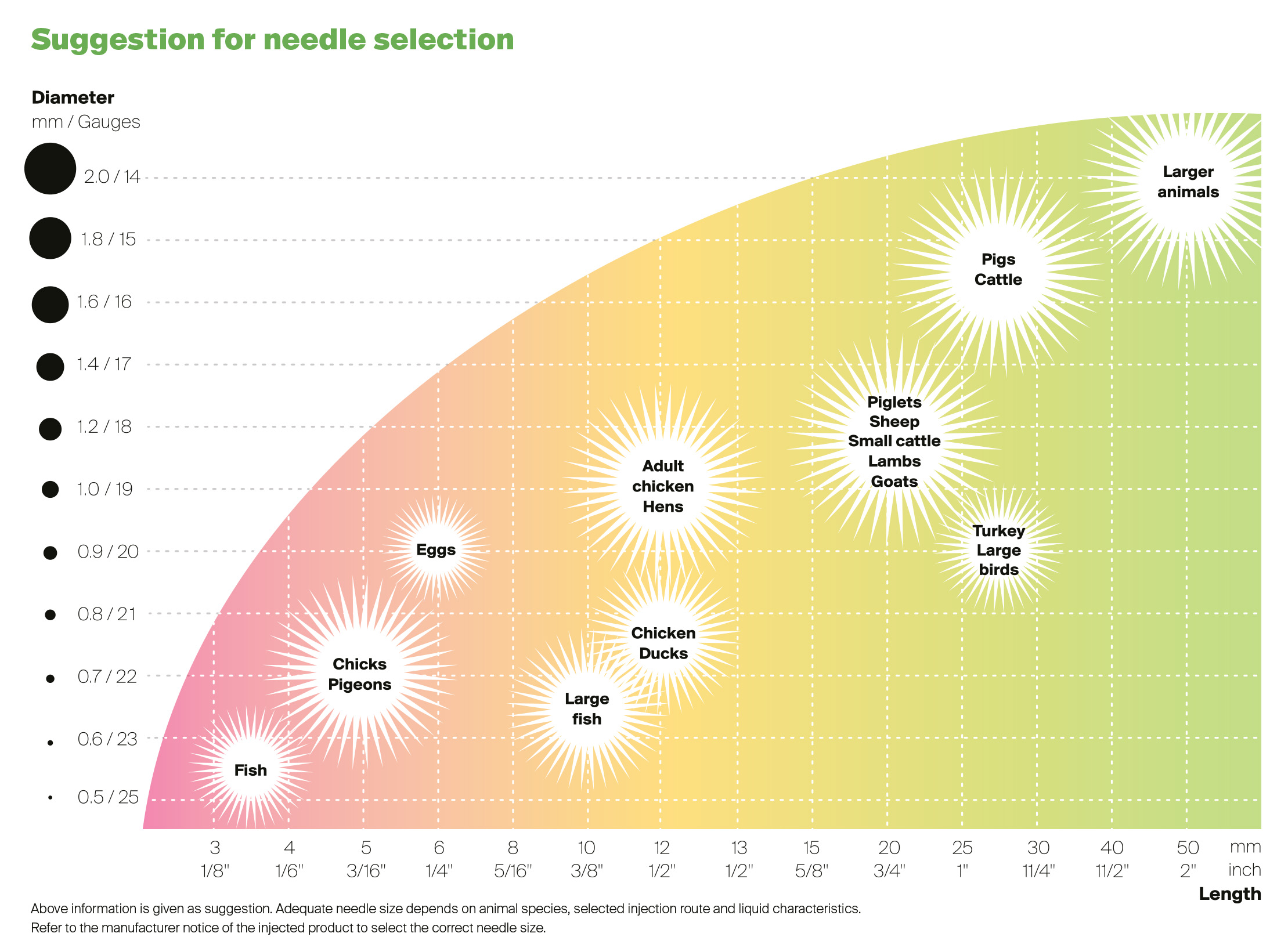

Socorex Suggestion For Needle Selection Table EN

Injection needles

Ordering information

ø x L	Gauge x L inch	Packaging	Cat. No.
0.5 x 3 mm	25G x 1/8	12 / pk	371.0503
0.5 x 4 mm	25G x 1/6	12 / pk	371.0504
0.6 x 3 mm	23G x 1/8	12 / pk	371.0603
0.6 x 4 mm	23G x 1/6	12 / pk	371.0604
0.6 x 5 mm	23G x 1/5	12 / pk	371.0605
0.6 x 6 mm	23G x 1/4	12 / pk	371.0606
0.6 x 8 mm	23G x 5/16	12 / pk	371.0608
0.7 x 4 mm	22G x 1/6	12 / pk	371.0704
0.7 x 6 mm	22G x 1/4	12 / pk	371.0706
0.7 x 9 mm	22G x 3/8	12 / pk	371.0709
0.7 x 10 mm	22G x 3/8	12 / pk	371.0710
0.7 x 13 mm	22G x 1/2	12 / pk	371.0713
0.8 x 4 mm	21G x 1/6	12 / pk	371.0804
0.8 x 6 mm	21G x 1/4	12 / pk	371.0806
0.8 x 10 mm	21G x 3/8	12 / pk	371.0810
0.8 x 20 mm	21G x 3/4	12 / pk	371.0820
0.8 x 25 mm	21G x 1	12 / pk	371.0825
0.8 x 40 mm	21G x 1 1/2	12 / pk	371.0840
0.8 x 80 mm	21G x 3 1/4	12 / pk	371.0880
0.9 x 10 mm	20G x 3/8	12 / pk	371.0910
0.9 x 13 mm	20G x 1/2	12 / pk	371.0913
1.0 x 10 mm	19G x 3/8	12 / pk	371.1010
1.0 x 13 mm	19G x 1/2	12 / pk	371.1013
1.0 x 15 mm	19G x 5/8	12 / pk	371.1015
1.0 x 20 mm	19G x 3/4	12 / pk	371.1020
1.0 x 25 mm	19G x 1	12 / pk	371.1025
1.0 x 30 mm	19G x 1 1/4	12 / pk	371.1030
1.2 x 10 mm	18G x 3/8	12 / pk	371.1210
1.2 x 13 mm	18G x 1/2	12 / pk	371.1213
1.2 x 15 mm	18G x 5/8	12 / pk	371.1215
1.2 x 20 mm	18G x 3/4	12 / pk	371.1220
1.2 x 50 mm	18G x 2	12 / pk	371.1250
1.4 x 10 mm	17G x 3/8	12 / pk	371.1410
1.4 x 20 mm	17G x 3/4	12 / pk	371.1420
1.6 x 10 mm	16G x 3/8	12 / pk	371.1610
1.6 x 100 mm	16G x 4	12 / pk	371.16100
1.6 x 13 mm	16G x 1/2	12 / pk	371.1613
1.6 x 20 mm	16G x 3/4	12 / pk	371.1620
1.6 x 25 mm	16G x 1	12 / pk	371.1625
1.6 x 30 mm	16G x 1 1/4	12 / pk	371.1630
1.8 x 10 mm	15G x 3/8	12 / pk	371.1810
1.8 x 20 mm	15G x 3/4	12 / pk	371.1820
1.8 x 30 mm	15G x 1 1/4	12 / pk	371.1830
2.0 x 30 mm	14G x 1 1/4	12 / pk	371.2030
2.0 x 40 mm	14G x 1 1/2	12 / pk	371.2040
2.0 x 50 mm	14G x 2	12 / pk	371.2050

Description

Swiss made quality Luer Lock needles intended for safe, precise animal injections. Sharp bevel and stainless steel material care for excellent durability.

Reusable, autoclavable
Dispensing box with sliding lid for easy and safe needle removal
One dozen needles per box

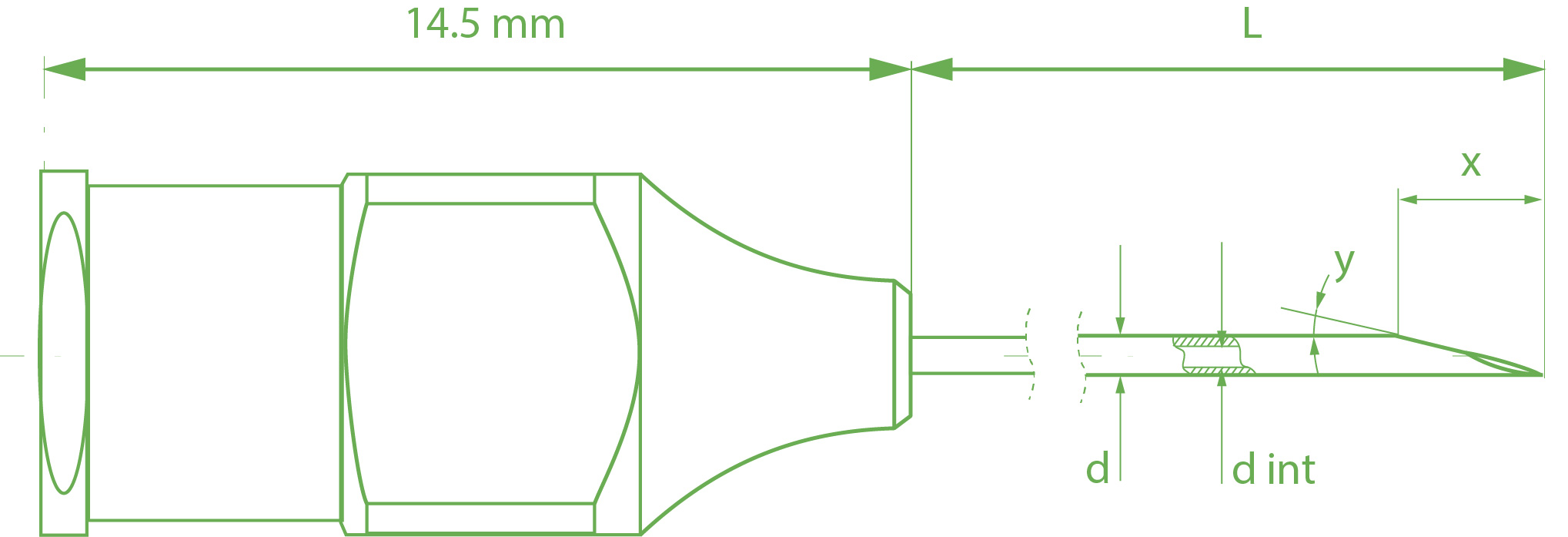

Technical information

Dimensions

Cat. No.	Diameter (mm) d	Length (mm) L	Internal diameter (mm) d int	Bevel Length (mm) x	Bevel angle (°) y
371.0503	0.5	3	0.25	2	12
371.0504	0.5	4	0.25	2	12
371.0603	0.6	3	0.35	2.4	12
371.0604	0.6	4	0.35	2.4	12
371.0605	0.6	5	0.35	2.4	12
371.0606	0.6	6	0.35	2.4	12
371.0615	0.6	15	0.35	2.4	12
371.0704	0.7	4	0.4	2.8	12
371.0706	0.7	6	0.4	2.8	12
371.0710	0.7	10	0.4	2.8	12
371.0806	0.8	6	0.5	3.2	12
371.0810	0.8	10	0.5	3.2	12
371.0825	0.8	25	0.5	3.2	12
371.0910	0.9	10	0.6	3.6	13
371.0913	0.9	13	0.6	3.6	13
371.1010	1	10	0.65	4	12
371.1013	1	13	0.65	4	12
371.1015	1	15	0.65	4	12
371.1020	1	20	0.65	4	12
371.1210	1.2	10	0.8	4.8	12
371.1220	1.2	20	0.8	4.8	12
